Components

Components represent the services, systems, and infrastructure you want to track and display.

Overview

Components are the foundation of ReliaPulse. They represent anything you want to:

• Display on your public status page
• Monitor for availability
• Track uptime metrics
• Associate with incidents

Component Types

ReliaPulse uses a polymorphic component model with three types:

SERVICE Type

Manual status control - Best for logical groupings or services you don't monitor directly.

SERVICE components:
├── Don't have automated health checks
├── Status is set manually or via incidents
├── Great for grouping other components
└── Can contain subcomponents

Use cases:

• Component groups (e.g., "Backend Services", "Infrastructure")
• Third-party services you can't monitor
• Services monitored by external tools

ENDPOINT Type

HTTP health checks - Best for APIs, websites, and any HTTP endpoint.

ENDPOINT components:
├── Automated HTTP health checks
├── Configurable check intervals
├── Custom conditions (status code, response time, JSON path)
├── Auto-create incidents on failure
└── Track response time and uptime metrics

Configuration options:

• URL: The endpoint to check
• Method: GET, POST, PUT, DELETE, etc.
• Headers: Custom request headers
• Body: Request body for POST/PUT
• Check Interval: How often to check (15s to 24h)
• Timeout: Request timeout in milliseconds
• Conditions: What defines "healthy"

METRIC Type

External metrics - Best for infrastructure metrics from Datadog, Prometheus, etc.

METRIC components:
├── Pull metrics from integrations
├── Set warning/critical thresholds
├── Display values on status page
└── Auto-update status based on thresholds

Configuration options:

• Integration: Which integration to use
• Query: Metrics query (e.g., avg:cpu_usage{*})
• Polling Interval: How often to fetch
• Warning Threshold: Value that triggers warning
• Critical Threshold: Value that triggers critical

Creating Components

Via Dashboard

1. Navigate to Dashboard > Components
2. Click "Add Component"
3. Fill in the form:
   • Name: Display name (e.g., "API Server")
   • Type: SERVICE, ENDPOINT, or METRIC
   • Description: Optional description
   • Parent: Optional parent component for hierarchy
4. Configure type-specific options
5. Click "Create"

Via API

# Create a SERVICE component
curl -X POST http://localhost:3000/api/v1/components \
  -H "Authorization: Bearer sk_live_xxx" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Backend Services",
    "type": "SERVICE",
    "description": "Core backend infrastructure"
  }'

# Create an ENDPOINT component
curl -X POST http://localhost:3000/api/v1/components \
  -H "Authorization: Bearer sk_live_xxx" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "API Health Check",
    "type": "ENDPOINT",
    "url": "https://api.example.com/health",
    "method": "GET",
    "checkInterval": 60,
    "expectedStatus": 200,
    "parentComponentId": "parent-id-here"
  }'

Component Hierarchy

Components can be organized in a parent-child hierarchy for better organization:

├── Infrastructure (SERVICE)
│   ├── AWS US-East (SERVICE)
│   │   ├── Primary Database (ENDPOINT)
│   │   └── Cache Cluster (METRIC)
│   └── AWS EU-West (SERVICE)
│       └── Secondary Database (ENDPOINT)
└── Applications (SERVICE)
    ├── Web App (ENDPOINT)
    └── Mobile API (ENDPOINT)

Benefits of Hierarchy

• Visual organization: Clear grouping on status pages
• Inherited status: Parent status reflects worst child status
• Bulk operations: Affect multiple components at once

Setting Up Hierarchy

1. Create parent components first (typically SERVICE type)
2. When creating child components, select the parent in the "Parent Component" field
3. Components can be nested up to 3 levels deep

Component Status

Status Updates

Manual update:

1. Edit the component
2. Change the status field
3. Save

Via incident:

1. Create an incident
2. Select affected components
3. Choose impact level for each

Automatic (ENDPOINT):

• Health check failures automatically update status
• Recovery restores to Operational

Custom Icons

Display custom icons for components:

1. Edit the component
2. Enter an Icon URL (must be publicly accessible)
3. Toggle "Show on Status Page" to display on public pages
4. Save

Cloning Components

Create copies of existing components:

1. Open the component you want to clone
2. Click the "Clone" button (or use the menu)
3. The clone is created with:
   • "(Copy)" suffix on the name
   • Disabled by default (review before enabling)
   • All settings copied

Via API:

curl -X POST http://localhost:3000/api/v1/components/{id}/clone \
  -H "Authorization: Bearer sk_live_xxx"

Muting Components

Mute ENDPOINT components to suppress alerts while still monitoring:

1. Edit the component
2. Toggle "Muted" on
3. Save

When muted:

• Health checks continue running
• Status still updates
• No notifications are sent
• No on-call alerts trigger
• A "Muted" badge appears in the dashboard

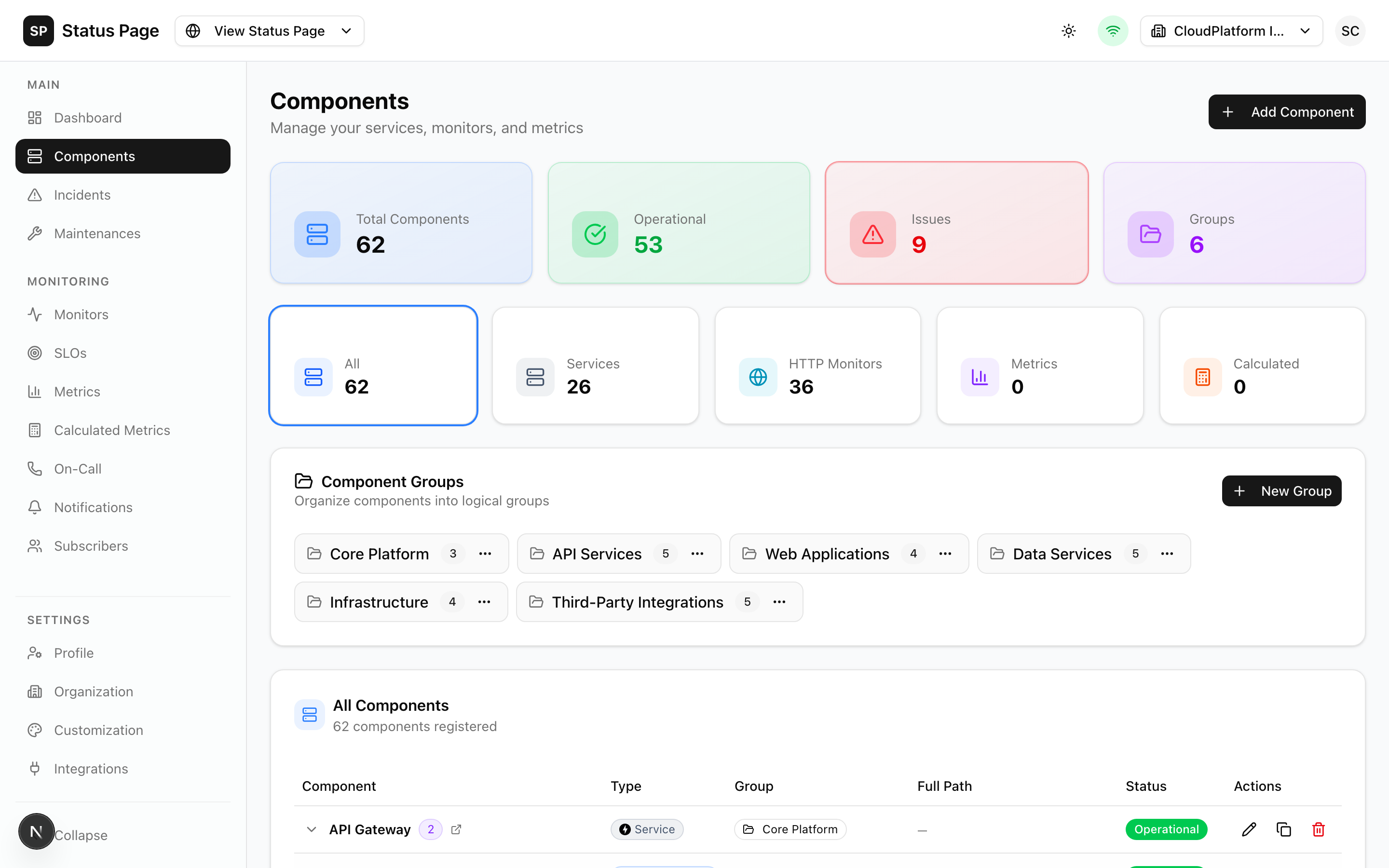

Filtering Components

The components page supports several filters:

• Type filter: Show only SERVICE, ENDPOINT, or METRIC
• Status filter: Show only specific statuses
• Search: Find by name or description
• Groups: Filter by parent component

Deleting Components

1. Open the component
2. Click "Delete"
3. Confirm the deletion

Best Practices

Naming Conventions

• Use clear, user-facing names
• Avoid internal codenames
• Be consistent across similar components

Organization

• Create SERVICE groups for logical categorization
• Keep hierarchy shallow (2-3 levels max)
• Group by user impact, not internal architecture

Monitoring

• Set appropriate check intervals (not too frequent)
• Use meaningful conditions
• Configure auto-incidents for critical services

Related Documentation

• Monitors - Configure health check conditions
• Metrics - Set up external metrics
• Status Pages - Display components on public pages
